CORINMAC Column Type Palletizer

Need a palletizer that fits narrow spaces but handles heavy loads with robotic precision? The CORINMAC Column Type Palletizer uses a cylindrical coordinate system — one vertical lifting shaft plus three horizontal rotary axes — to create a large cubic workspace within a compact arm span. Fully servo-controlled with RV reducers, it delivers fast cycle times and precise repeat positioning for cartons, woven bags, film bags, and large barrels.

Equipment Shown

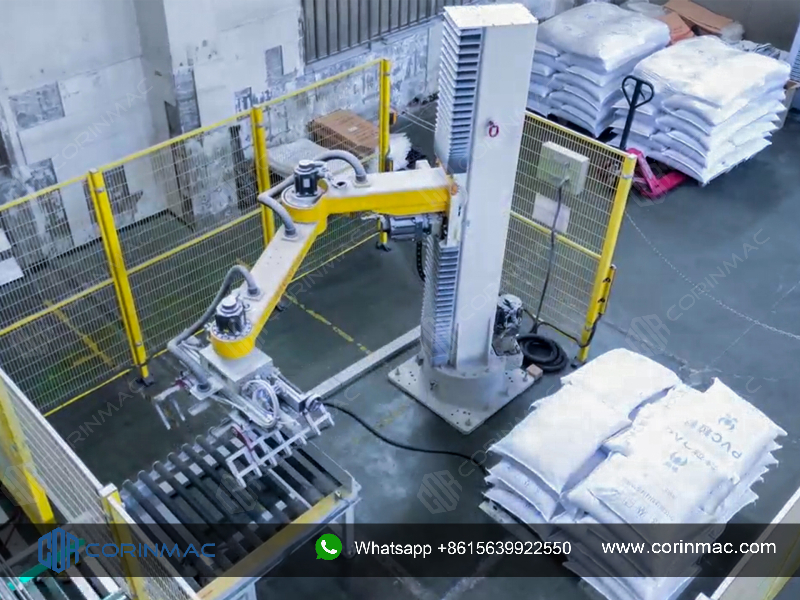

Column Type Palletizer — vertical lifting shaft + 3 rotary axes, cylindrical coordinate system

Gripper options — suction cup / splint / gripper, swappable for different products

Servo motors + RV reducers — high rotating speed, excellent positioning accuracy

Precision rack-and-pinion drive + linear guides — on the vertical lifting shaft

Key Specs

Palletizing Speed: 7-9 cycles/min

Loading Capability: 70-150 KG

Applicable Products: Cartons, film bags, woven bags, large barrels

Palletizing Height: 1600-1800mm off the ground

Total Height: 2924.5mm

Rotation Range: 180°+ (simultaneous multi-pallet palletizing)

Power: 7.85KW | Supply: 380V 50Hz

Air Supply: 0.5-0.6 kg/m³, 1.5 m³/min

Weight: 820KG

Material: Carbon steel baking paint (RAL7035 + RAL1018)

Pallet Supply: Manual or automatic placement

Structural Highlights

Base and robot arms: castings — stable structure, high rigidity

Column: welded steel — sturdy, customizable height per site requirements

Rotary shafts: RV reducers + servo motors — fast, precise

Vertical shaft: rack-and-pinion + linear guides — high accuracy, superior rigidity


Wide Applications

Beer, beverages, pharmaceuticals, chemicals, and more — one machine compatible with multiple product types.

Why CORINMAC

Custom production solutions for dry mortar lines and automatic packaging & palletizing systems. From design to after-sales, one-on-one support throughout.
