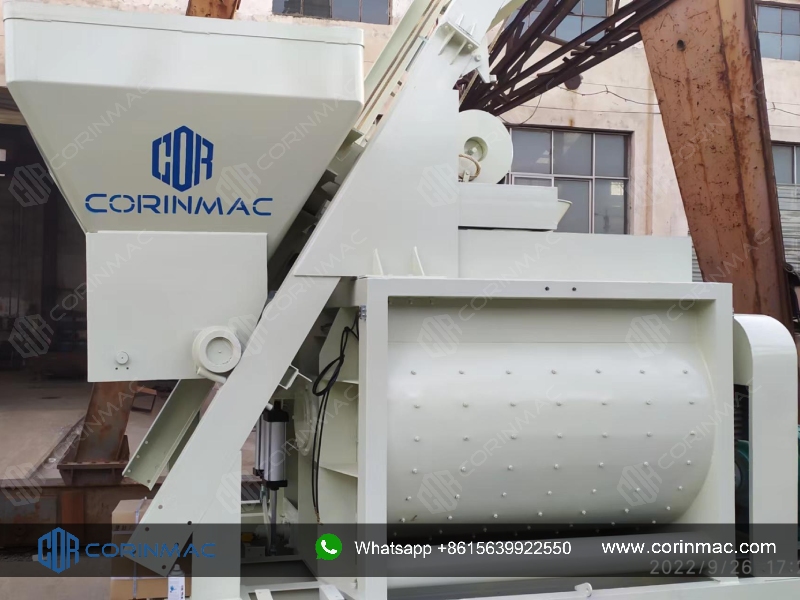

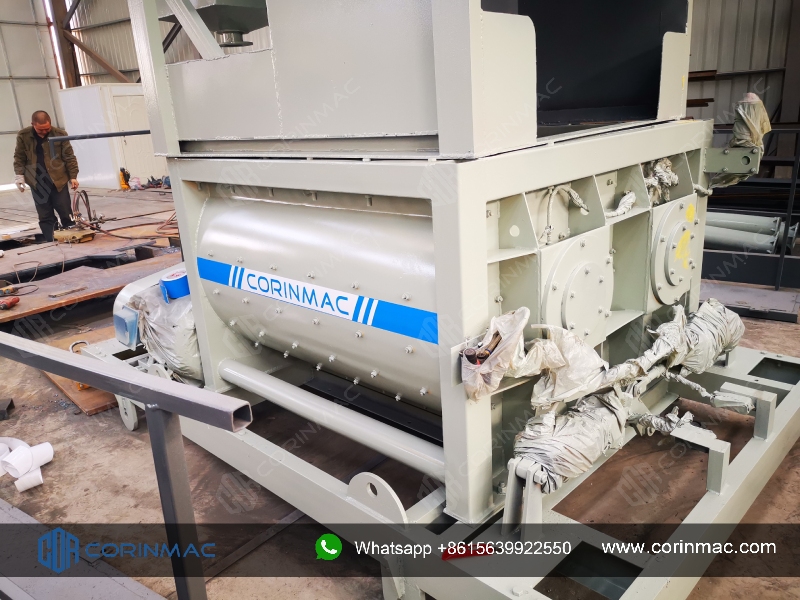

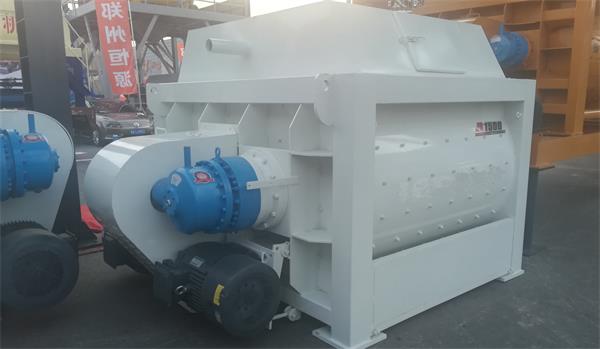

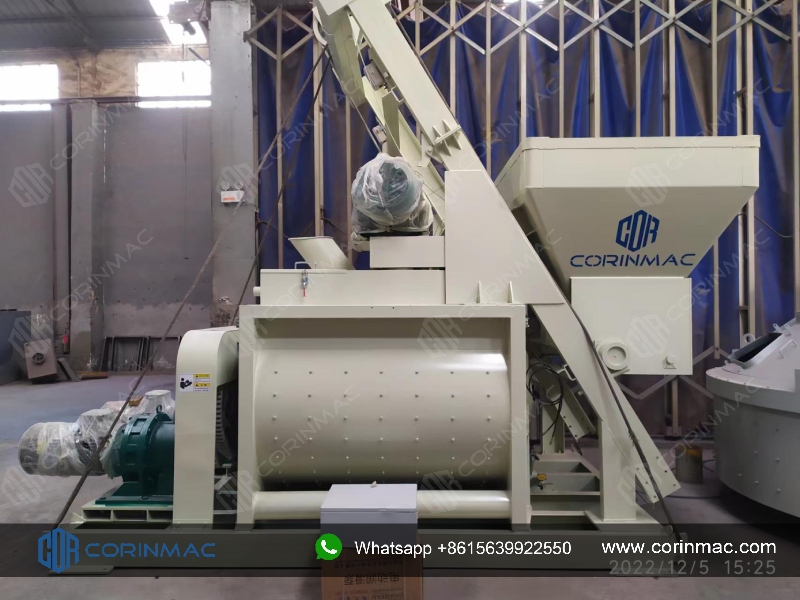

Twin Shaft Concrete Mixer
Message
Description
The twin shaft concrete mixer is characterized by high speed of mixing components, high strength, and good quality. Depending on the selected components and fillers, a homogeneous mixture (hard, super-hard and movable) with the required processability can be obtained in 60 seconds. Due to its small size, it is easy to transport.
Working principle:
The twin shaft concrete mixer is driven by a motor through a belt to reducer to drive the shaft rotating . Because the two shafts rotate in opposite directions, the materials are thrown from the bottom and the middle to the middle stirring area. Because the paddles on the two shafts are installed in the left and right spiral direction, the materials are moved forward and backward while being turned in the radial and axial directions Thus, a strong stirring effect is generated, so that the materials can be uniformly and quickly stirred.
Features:
Parameters
|
Model |
JS500 |
JS750 |
JS1000 |
JS1500 |
JS2000 |
|
|
Loading (l) |
800 |
1200 |
1600 |
2400 |
3200 |
|
|
Unloading (l) |
500 |
750 |
1000 |
1500 |
2000 |
|
|
Aggregate particle size (mm) |
40/50 |
40/60 |
80/60 |
80/60 |
80/60 |
|
|
Stirring blades quantity |
2х7 |
2х7 |
2x8 |
2x10 |
|
|
|
Blade speed (r / min) |
31 |
31 |
25.5 |
25.5 |
23 |
|
|
Power of stirring motor (kw) |
18.5 |
30 |
18.5х2 |
45 |
75 |
|
|
Jumping speed (m/min) |
18 |
18 |
21.9 |
23 |
26.8 |
|
|
Lift motor power (kw) |
5.5 |
7.5 |
11 |
18.5 |
22 |
|
|
Water pump motor power (kw) |
0.75 |
1.1 |
3 |
3 |
4 |
|
|
Production (m³/h) |
25-35 |
35-50 |
50-60 |
75-90 |
100-120 |
|
|
Overall dimensions (mm) |
Transportation size |
2850x2200x2280 |
3110x2220x2300 |
4640x2250x2350 |
5068x2250x2440 |
5680x2250x2735 |
|
Working status |
4486x3030x5280 |
5025x3100x5680 |
8765x3436x9540 |
9645x3436x9700 |
10720x3870x10726 |
|
|
Weight (kg) |
4000 |
5500 |
9700 |
11130 |
15000 |
|
